Warp Loaner Kit Information


Overview

The Just Add Power Warp Loaner Kit is designed as a 3-Input, 3-Output system that provides an Installer the opportunity to gets hands-on experience with Just Add Power HDMI matrix switching without any investment required from them. It includes a Warp Engine Transmitter capable of rotating any video source 0-360 degrees and outputting to any Receiver in a system. A single Warp Engine Transmitter can build a Warp Mosaic Video Wall.

Find out how to get your hands on a Loaner Kit.


Included Hardware

Ships directly to you in a hard body case.

  • 1x 508POE - 3G Standard 4K Receiver - Display side decoder
  • 1x 518AVP - 3G Enhanced 4K Receiver - Display side decoder with USB and audio extraction
  • 1x 707POE - 3G Standard 4K Transmitter - Source side encoder
  • 1x 718AVP - 3G Enhanced 4K Transmitter - Source side encoder with USB, audio extraction, and extra audio inputs
  • 1x 737POE - Warp Engine 4K Transmitter - Combination Receiver/Transmitter device that will accept any source input, rotate it 0-360 degrees, and output to any other display
  • 1x Luxul AMS-1208P - gigabit Ethernet switch is the center of the matrix
  • 1x Luxul router - provides wireless network access
  • Network and HDMI cables


Connect Devices

You will need to provide these parts yourself:

  • 2x displays
  • 2x sources

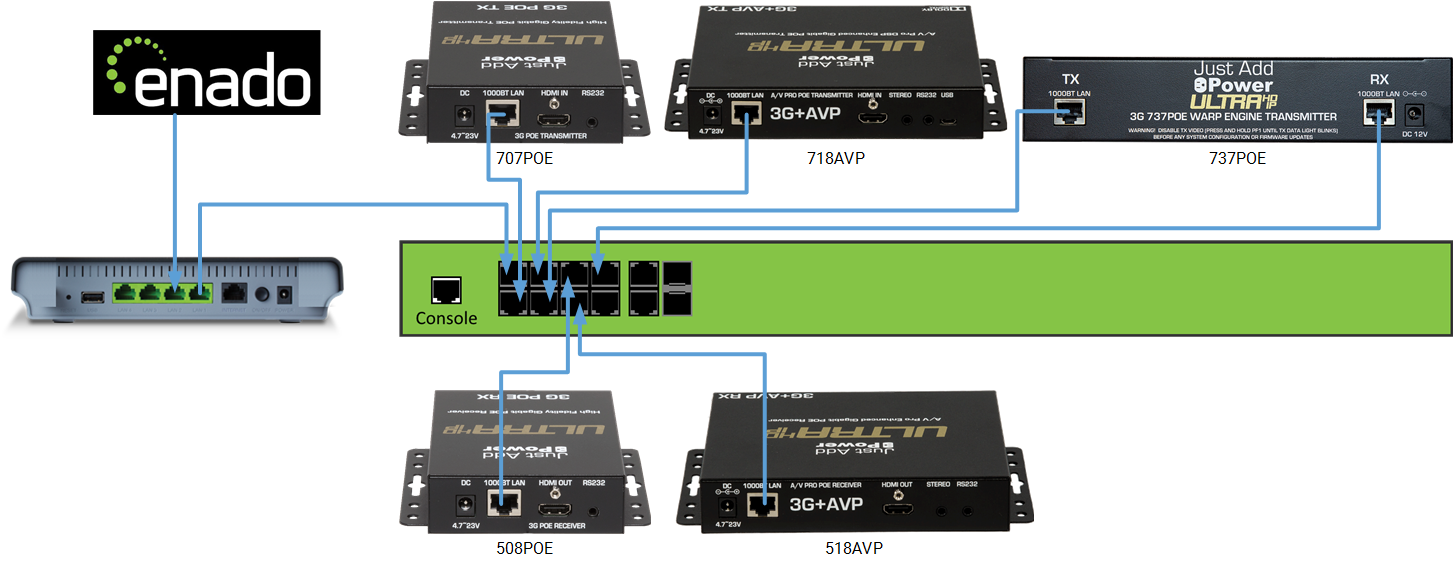

Once all hardware has been gathered and unboxed, build the system by connecting devices according to the labels:

  1. Router connected to port 1 of the switch with included network cable
  2. Transmitters connected to ports 2 and 3 of the switch with included network cables
  3. Warp Engine TX port connected to port 4 of the switch with included network cables
  4. Receivers connected to ports 5 and 6 of the switch with included network cables
  5. Warp Engine RX port connected to port 7 of the switch with included network cables
  6. Sources connected to Transmitters with included HDMI cables
  7. Displays connected to Receivers with included HDMI cables


Control

Control in the Just Add Power Matrix Loaner Kit is provided by Enado, a processor-based control system that uses a webUI as its main interface.

  1. Grab a PC, tablet, or phone with wireless network enabled. You can also hard-wire a PC to one of the LAN ports of the router.
  2. Connect to the JP-Loaner wireless network. There is no password.
  3. Navigate a web browser to http://192.168.0.2/enado or scan the QR Code on the Enado processor.
  4. Navigate the webUI to explore the features of Just Add Power:
    • Source Switching
    • Warp Transmitter Layout
    • Video Wall
    • KVM Support
    • CEC Endpoint Control
    • Line-/Mic-Inputs


SwitchPlease

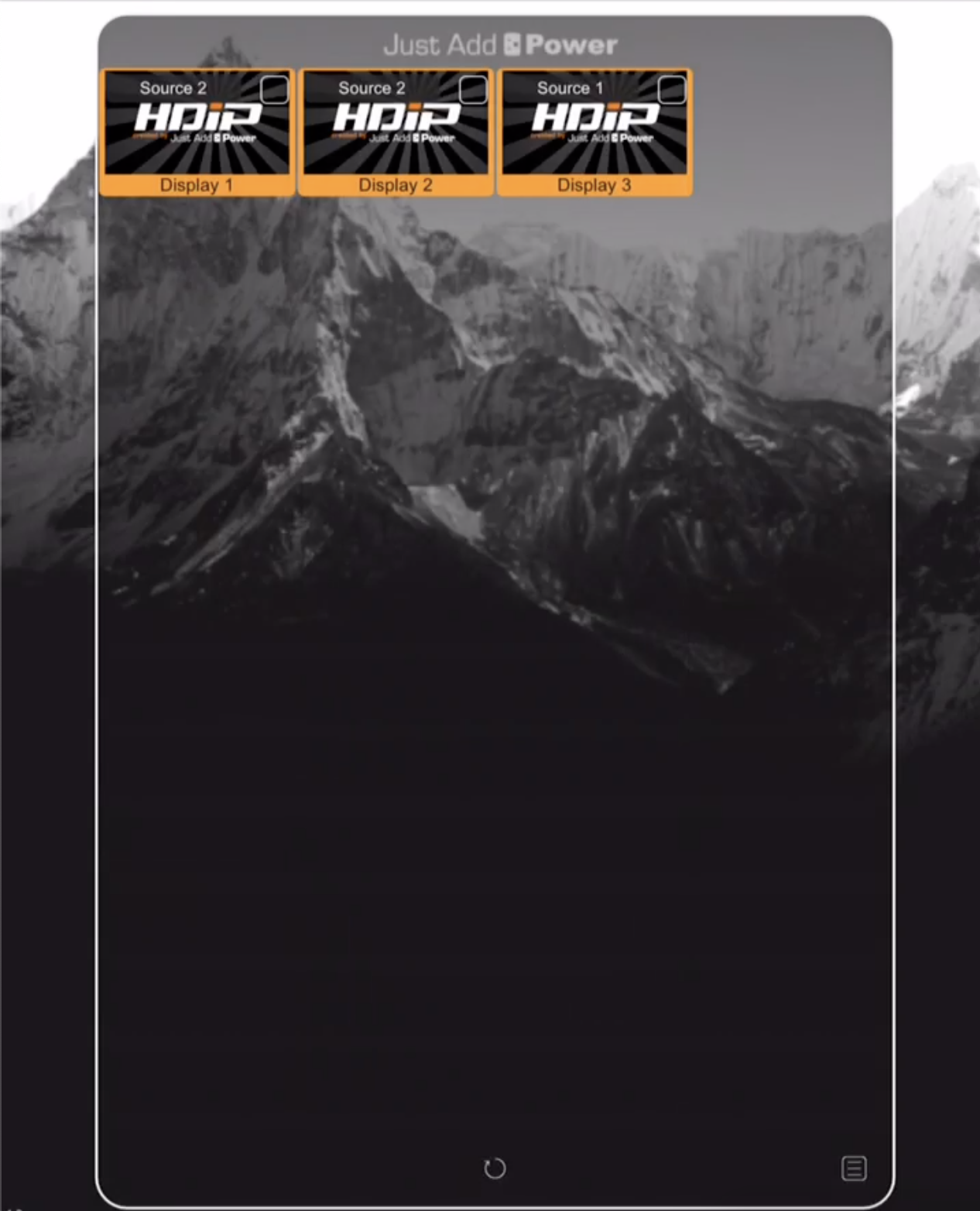

Switching control of the system is provided via our SwitchPlease app. Follow these instructions to access SwitchPlease:

  1. Grab a PC, tablet, or phone with wireless enabled
  2. Connect to the JP-Loaner wireless network. There is no password.
  3. Navigate a web browser to http://172.16.128.2/switchplease
  4. Tap or click a Display, then tap or click a Source to switch.
    • Sources 1 and 2 are the standalone Transmitters
    • Displays 1 and 2 are the standalone Receivers
    • Source 3 is the Warp Engine Transmitter port. Please see the next section for how to test it.
    • Display 3 is the Warp Engine Receiver port. Please see the next section for how to test it.
  5. To switch more than once Display
    • Tap or click the box in the top-right corner for each Display
    • Tap or click any selected Display
    • Tap or click a Source to switch all selected Displays.
  6. Optional: You can name the Displays and Sources through the page icon in the bottom-right corner.
