720P Custom EDIDs for Just Add Power Encoders on JADConfig Systems
print icon

Summary

Just Add Power EDIDs are designed to request a minimum resolution of 1080p or 4K. If you need a source to output 720p and the menu doesn’t allow it, you can apply a 720p EDID to the Encoder to force that resolution.


Apply 720P EDID to 2G Series Encoder

  1. Telnet to the IP address of the 2G Series Encoder connected to the source that should be outputting 720P
  2. In the command line interface, apply one of the two commands below:
    • 720p Stereo EDID Command:
      echo 00ffffffffffff002ab3003000000000141e010380a05a782aee91a3544c99260f505421080081c08100818090409500b30001000101011d007251d01e206e28550040846300001e000000100000000000000000000000000000000000fd00183c1e5a1e000a202020202020000000fc00484449502d373230502d322e300197020328f14504131e030123090404830100006a030c001000b83c210000e2000fe305c000e3060501011d007251d01e206e28550040846300001e00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000067 | sed 's/../0x\0 /g' | sed 's/ /,/g' > /sys/devices/platform/videoip/eeprom_content
    • 720p DD5.1 EDID Command:
      echo 00ffffffffffff002ab3003000000000141e010380a05a782aee91a3544c99260f505421080081c08100818090409500b30001000101011d007251d01e206e28550040846300001e000000100000000000000000000000000000000000fd00183c1e5a1e000a202020202020000000fc00484449502d373230502d415650014002032bf14584131e030126090404150750830f00006a030c001000b83c210000e2000fe305c000e3060501011d007251d01e206e28550040846300001e00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000067 | sed 's/../0x\0 /g' | sed 's/ /,/g' > /sys/devices/platform/videoip/eeprom_content
  3. You will notice the video on the Encoder drops immediately as the source adjusts to the new EDID instructions
  4. Done!

Apply 720P EDID to Omega/Ultra Series Encoder

Note: Ultra Series Encoders on the latest B3.X.X Firmware have this already built-in to their webUI.

  1. Open the webUI of the Ultra Series Encoder connected to the source that should be outputting 720p

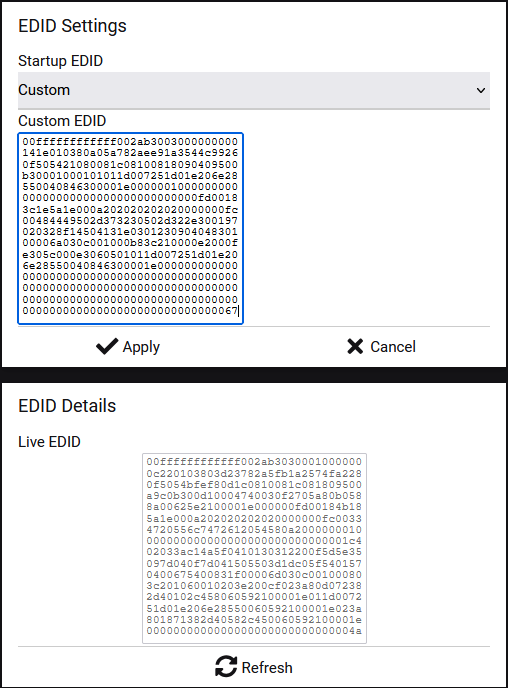

  2. Navigate to the Video tab and EDID Settings section.
  3. Set the Startup EDID dropdown to Custom. A box will appear below
  4. Copy+paste the desired EDID from below:
    • 720p Stereo EDID:
      00ffffffffffff002ab3003000000000141e010380a05a782aee91a3544c99260f505421080081c08100818090409500b30001000101011d007251d01e206e28550040846300001e000000100000000000000000000000000000000000fd00183c1e5a1e000a202020202020000000fc00484449502d373230502d322e300197020328f14504131e030123090404830100006a030c001000b83c210000e2000fe305c000e3060501011d007251d01e206e28550040846300001e00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000067
    • 720p DD5.1 EDID:
      00ffffffffffff002ab3003000000000141e010380a05a782aee91a3544c99260f505421080081c08100818090409500b30001000101011d007251d01e206e28550040846300001e000000100000000000000000000000000000000000fd00183c1e5a1e000a202020202020000000fc00484449502d373230502d415650014002032bf14584131e030126090404150750830f00006a030c001000b83c210000e2000fe305c000e3060501011d007251d01e206e28550040846300001e00000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000067
  5. Click Apply. You will notice the video on the Encoder drop immediately as the source adjusts to the new EDID instructions.
  6. Click Refresh on the EDID Details section to see the same EDID. This will confirm that the EDID was applied correctly.
